Roller blind motorisation instructions
Everything you need to set up, charge and adjust your motorised roller blind.
-
Product overview
Features:
- Battery powered
- Remote operated
- Completely child-safe system
- Rechargeable lithium-ion battery
Included accessories:
- 16 channel, battery-operated remote
- Battery charging cable
Backed by our 1-year manufacturer’s warranty.

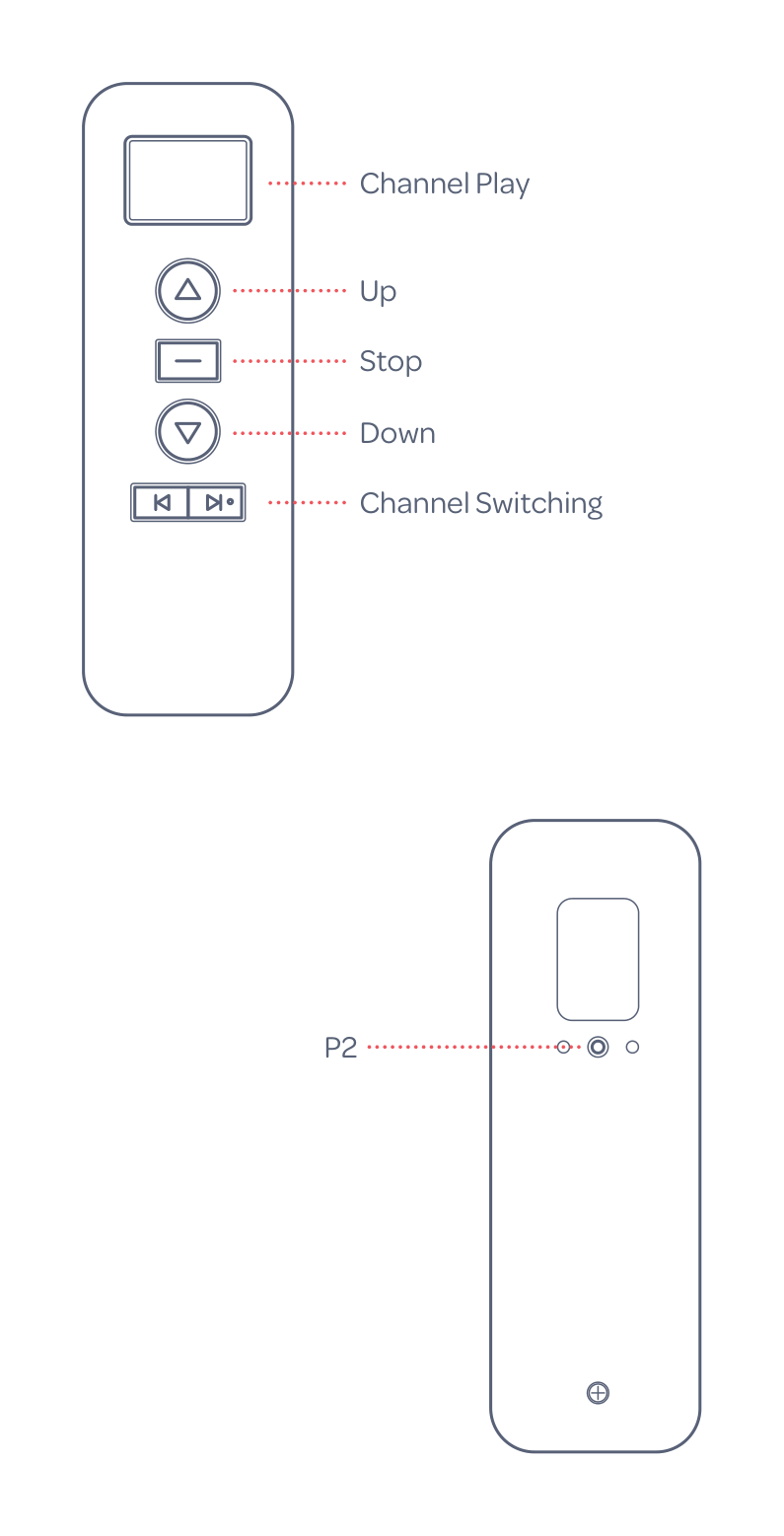

Remote
Before programming, please ensure your motor is turned on and your remote is on the correct channel.

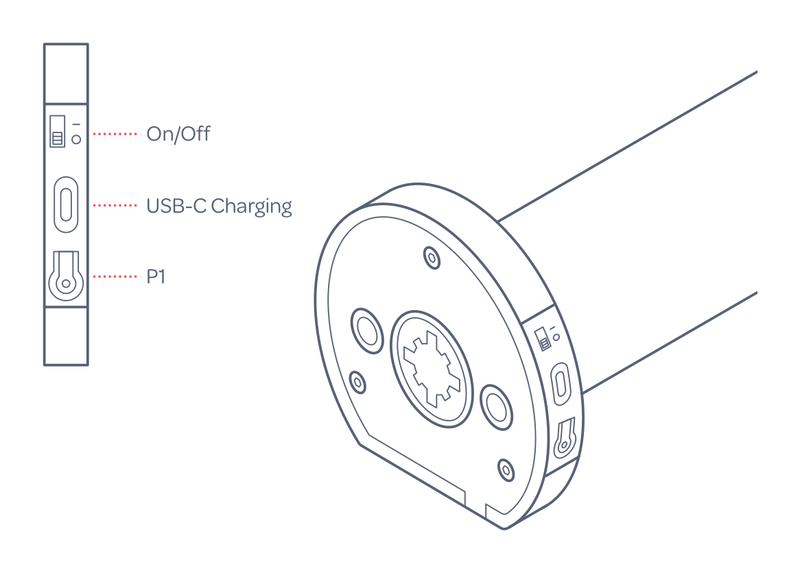

Motor
-
Set up instructions
Turn on the blind motor

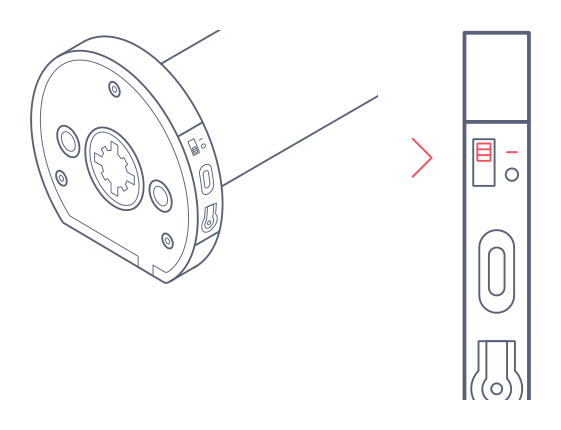

Find the control panel on the end of the blind motor and locate the on/off switch.
Turn the switch to the on position. The red indicator light will flash when the power is turned on.
Pair the remote with the blind

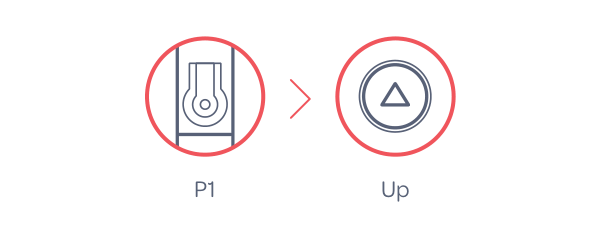

Press and hold the P1 button on the blind motor for 1 second to put it into pairing mode.
When pairing mode has successfully been turned on, the blind will ‘jog’ (a short movement in one direction) once. If the blind doesn’t jog, repeat step 2 from the beginning.
Within 10 seconds of the blind entering pairing mode, press ‘up’ on the remote. The blind will jog again to confirm pairing. If the blind doesn’t jog, repeat step 2 from the beginning.
Check the blind direction

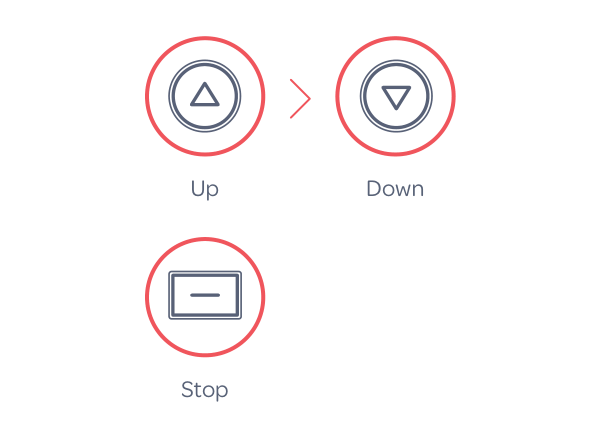

Using the ‘up’ and ‘down’ buttons on the remote, make sure the blind is running in the correct direction. If the blind is running in the opposite direction to the remote commands, the blind motor will need to be reversed.
Reverse the direction of the blind motor
Press and hold ‘stop’ on the remote for 5 seconds. If successful, the blind will jog once.
Make sure you test the direction of the blind again before moving on to step 4.
Set the upper limit of the blind
Locate the ‘P2’ button on the back of the remote. Using a paperclip or similar, press and hold ‘P2’ for 1 second to enter limit setting mode. The blind will jog once to confirm it has entered limit setting mode.

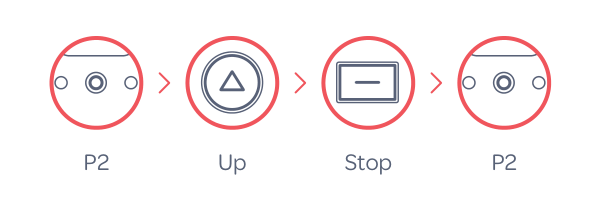

Press ‘up’ on the remote and when the blind is as high as you want it to go, press ‘stop’. Then press and hold the ‘P2’ button for 1 second to confirm the upper limit setting.
Tip
Avoid pressing the ‘down’ button while setting the upper limit as this will confuse the upper and lower limit programming.
Set the lower limit of the blind
Locate the ‘P2’ button on the back of the remote. Using a paperclip or similar, press and hold ‘P2’ for 1 second to enter limit setting mode. The blind will jog once to confirm it has entered limit setting mode.

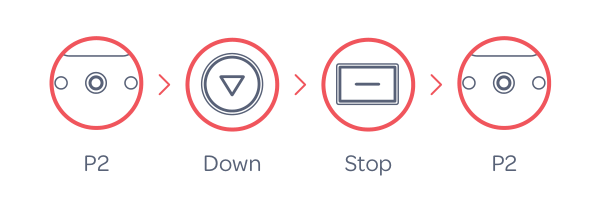

Press ‘down’ on the remote and when the blind is as low as you want it to go, press ‘stop’. Then press and hold the ‘P2’ button for 1 second to confirm the lower limit setting.
Tip
Avoid pressing the ‘up’ button while setting the lower limit as this will confuse the upper and lower limit programming.
-
Nice work, you’re all set up and ready to use your motorised blinds!
-
Charging and battery care
Charging your blinds

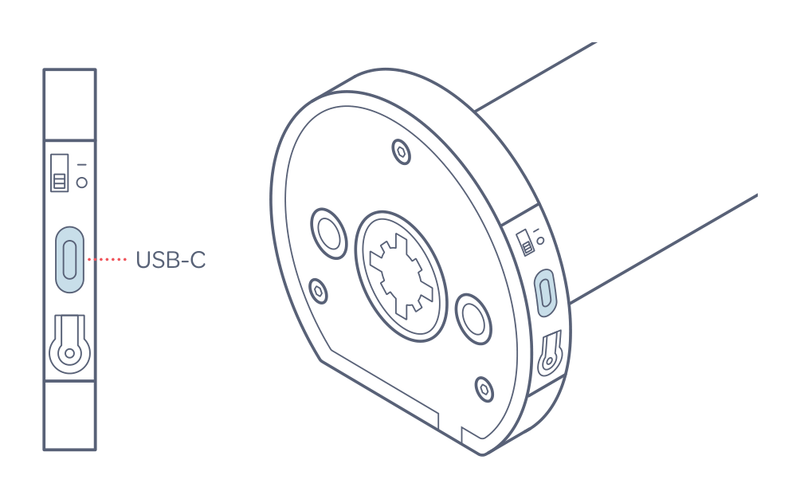

To charge your blinds, plug the supplied cable into the USB C port on the side of the motor and run the cable to a grounded electrical outlet.
Charging your remote

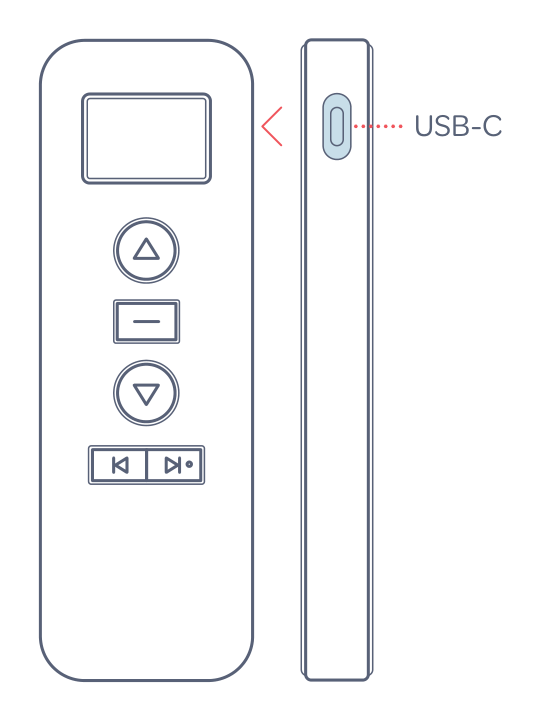

To charge your remote, plug the supplied cable into the USB C port on the side of the remote and run the cable to a grounded electrical outlet. If there is no USB C port on the side of the remote, you may have a battery operated remote. Look for a release on the back of the remote to change the battery.
Always be sure to insert batteries the correct way and only replace batteries like for like.
When to charge
To extend the life of your blind’s lithium battery and motor, never let the battery go completely dead. We recommend charging your blinds and remote every 6 months.
Your blinds may require more frequent charging, depending on how often they are used. When the battery is getting low, you’ll notice:
- The red light behind the programming button flashing
- The blind stuttering when it starts to move up or down
If you notice either of these issues, charge your blinds immediately to avoid damaging the battery.
Tip
Use the start and end of daylight savings as a reminder to charge your blinds.
Charging time

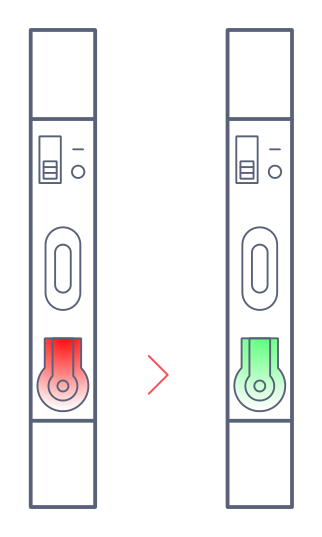

Charging the motor can take up to 7 hours. You’ll know it’s fully charged when the light on the programming button turns from red to green.
Going away for longer than 2 months
If the blind won’t be in use for more than 2 months, store it at roughly half a charge and turn the motor off by flipping the switch on the head of the motor to the 0 position. Turn it back on by flipping back to the I position.
It is also good practice to turn a motor off when programming another motor to reduce the risk of accidentally programming the wrong blind.
-
Making adjustments
Changing the upper or lower limit position
Move the blind to the existing limit you wish to fine tune. Press and hold ‘P2’ on the remote for 1 second to enter fine tuning mode, the motor will jog once to confirm. Adjust the limit to the new desired height and press ‘stop’. Press and hold ‘P2’ for 1 second to confirm the new limit and exit fine tuning mode. The motor will jog once to confirm.
Removing the upper or lower limit position
Move the blind to the existing limit you wish to remove. Press and hold ‘P2’ on the remote for 7 seconds. While holding ‘P2’ the blind will jog once, then jog again after the 7 seconds. The limit will be removed.
Factory reset
Press and hold ‘stop’ on the remote for 5 seconds. The motor will jog once. Within 10 seconds, press and hold ‘P2’ for 7 seconds. The blind will jog once after 1 second and then twice after 7 seconds. The motor and remote are now reset, with all limits and settings removed.
-
Product specifications
Motor specifications
- Voltage: 5V
- Torque: 1.8 N.m
- Max run time: No limit
- Rated RPM: 25RPM
- Radio frequency: 433.92MHz
- RF modulation: ASK
- Power: 6.7W
- Control methods: Remote control
- Limited switch type: Electronic
- Current: 0.9A
- Battery: 3000mAh
- Temp working range: -10°C ~ 50°C
- IP rating: IP44
- Sound level: ≤30dB
- Sensitivity: -110dBm
- Battery working time: 4-6 months (up/down 1 p/day)
Remote specifications
- 16-channel remote: AC123-16
- Battery type: 3V CR2032
- Transmitting current: ≤18mA
- Transmitting power: ≤10mW
- Frequency: 433.92 MHz/868 MHz
- RF modulation mode: ASK/FSK
-
Limited warranty information
1-year limited warranty on all hardware components and electronics.
What this warranty covers
- 1-year limited warranty covering all hardware components and electronics from the date of purchase
- This warranty protects you against defects in materials and workmanship in this product
What this warranty does not cover
This warranty does not cover damage caused by:
- Incorrect installation or setup
- Any alteration or modification of the product
- Improper use or maintenance
- Misuse, abuse, or accidents
- Neglect or exposure to excess moisture, fire, power surges, or natural disasters
- Installation or removal of the product
- Unauthorised repairs or tampering
- Any other issue not directly related to defects in materials or workmanship
Additionally, this warranty does not cover:
- Third-party equipment, cables, or accessories used with this product
- Products that become obsolete or incompatible with other technologies
Who this warranty covers
- Only the original purchaser is covered by this warranty
- This warranty cannot be transferred to other people who buy or receive this product later
What Bargain Blinds will do
If your claim is approved, Bargain Blinds will choose one of these options:
- Repair the defective parts within a reasonable time at no cost to you for parts or labour. Bargain Blinds will also pay for shipping to return the repaired product to you
- Replace your product with either an identical product or a similar product that performs the same functions
- Issue a refund of your original purchase price, minus depreciation based on the age of the product
What you (the purchaser) are responsible for
- You must pay for shipping the product to Bargain Blinds or an authorised repair centre
- You are responsible for any costs related to removing or reinstalling the product
- You are responsible for setting up the product, adjusting user controls, or programming required for installation
How to make a warranty claim
To make a claim under this warranty:
- Contact the authorised Bargain Blinds reseller where you purchased the product
- Provide your original, dated receipt as proof of purchase
- You may be directed to an authorised repair person or asked to return the product
- If you need to return the product, package it properly for shipping and prepay all shipping and insurance costs
The product may need to be inspected to determine if it is faulty and whether the issues are covered by this warranty.
Legal limitations
- Bargain Blinds’ maximum liability will not exceed the actual purchase price of the product
- Bargain Blinds is not responsible for direct, special, incidental or consequential damages resulting from any warranty breach or under any other legal theory
- This warranty and the remedies described are your exclusive options for product issues
Warranty voiding conditions
This warranty becomes void if:
- The serial number label has been removed or defaced
- The product was not distributed by Bargain Blinds
Thank you for purchasing a Bargain Blinds product. We hope it serves you well for years to come.
